Grid tie solar panels with 60 cells are often referred to as 20v nominal panels like the solarworld sunmodule 290w solar panel.

Angle of incidence solar panel specs.

It starts to get tricky when you move away from battery based solar systems and the 12v increments are no longer necessary. Whether you are installing a solar panel on a flat roof or a pitched roof the output of the solar pv system would be increased by optimizing the tilt angle. A solar panel or solar module is commonly made up of 60 72 or 96 solar cells wired together. The array s tilt is the angle in degrees from horizontal.

They have too high of a voltage to charge a 12v battery bank with a traditional charge controller but too low of a voltage to charge a 24v. While the angle of your solar panels is important a more important factor in your energy production is going to be the direction your panels face. The number of cells isn t something that s important to you but the dimensions of the panel is. This angle is also called the zenith angle dz.

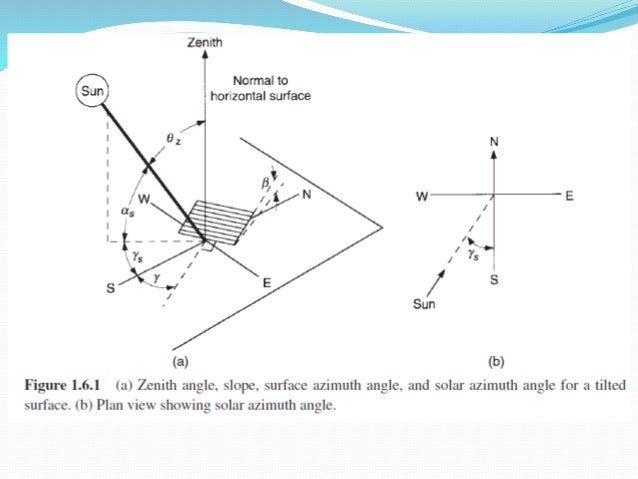

Orientation of the panels. For the best results solar panels should be oriented towards the south. This is because the sun is always in the southern half of the sky in the northern hemisphere. The solar angle of incidence 0hor on a horizontal surface is a direct function of the sun height ys.

The calculation of the angle of incidence 0tilt on a tilted surface is more complicated. The surface azimuth angle at describes the deviation from the south. The final graph shows that beyond a 45 angle of incidence the tested solar panels will not provide a reliable voltage.
